CABLE CHAIN
Guide channel system

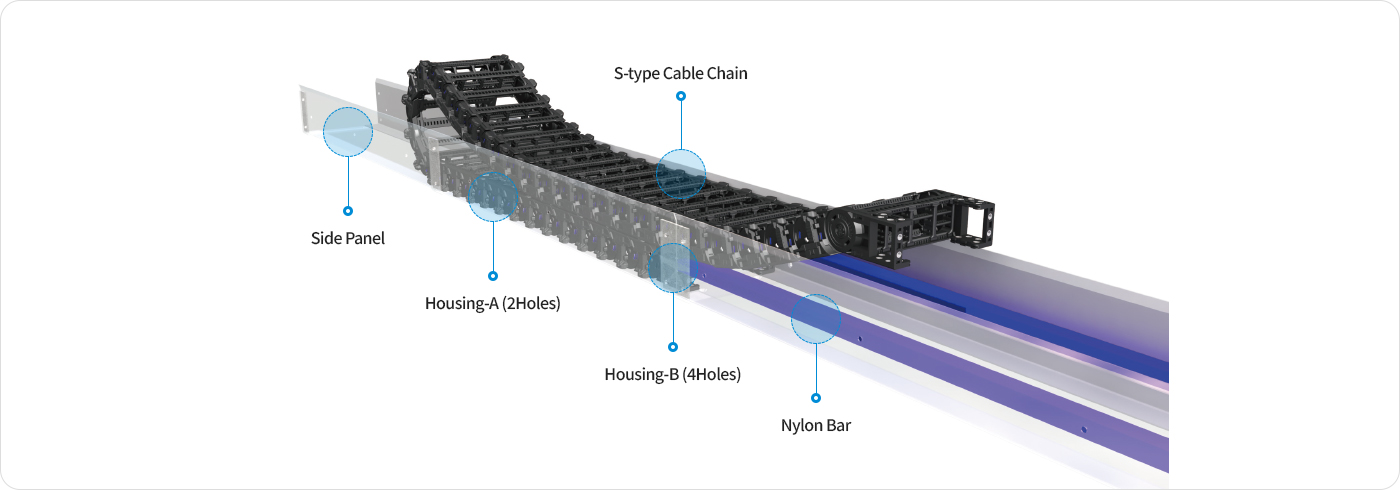

Descriptions (Guide Channel System)
For long stroke applications the guide channel is applied to ensure that the nsb chain S-Type stays on track and safety during operatio
-
A-Zone
Section of touching upper and below each other. -
C-Zone
Section of touching upper chain and only nylon bar.
General information
| Item | Value |
|---|---|
| Material | CPS-Amid(PA6+GF), RoHs |
| Speed | 3~5㎧ |
| Standard -1 | 10~15㎨ |
| Standard -2 | -30℃ ~+130℃ |
| Color | Yellow, Black |
Orderable Products
| Product Model | Value |
|---|---|
| Shift Chain | ST044S, ST044ES, ST072ES, ST095ES, ST120ES, ST044RS, ST072RS, ST095RS, ST120RS, ST150RS, ST044ERS, ST072ERS, ST095ERS, ST120ERS |
| nsb Chain | nsb050S, nsb065S, nsb080S |

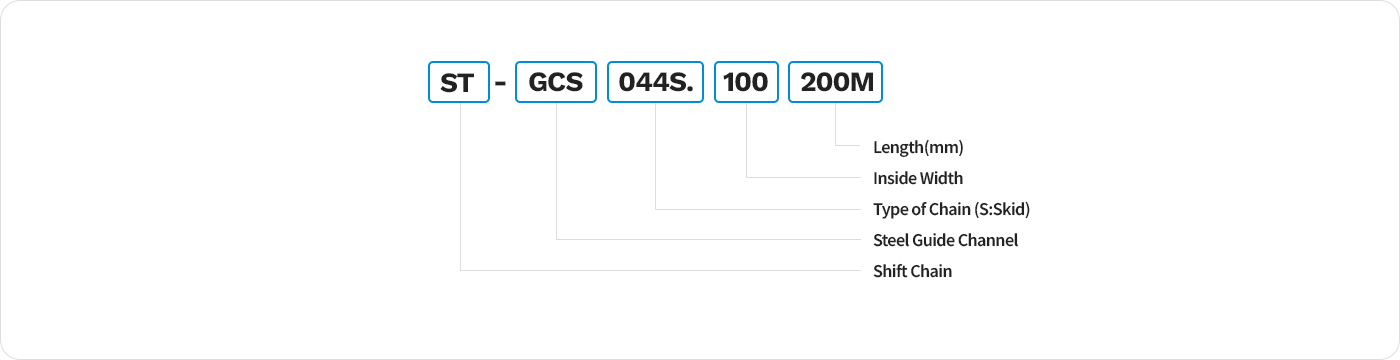

Guide Channel Ordering
Nylon Bar
It is a supporting unit for cable chain, when cable chain comes to C-Zone, it has a role of supporting upper cable chain.
Descriptions (Nylon Bar)
- 01
Secure and stable structure
-
- By bolting 4 bolts for 1 nylon bar(800mm)
- Narrow gap between bolting area as 300mm /100mm(Bolting gap of previous model was 398mm) -
- By making 4 bumps per 1 nylon bar(800mm).
- It can avoid bolt loosening and guarantee long life span. -
- As each nylon bar gets connected each other, it is more stable than previous one.
- Its design has been changed for being easy to assemble.
- Moreover, as there's no interval(gap), it can make smooth sliding as well.
- By making 4 bumps per 1 nylon bar(800mm).
- It can avoid bolt loosening and guarantee long life span.
- 02
Low dust!
-
- Same material with chain.
- It is low dust and anti-abrasively due to its raw material which is same with chain(Polyamide6+GF30%)
- By reducing narrow cross-section, abrasion part could be fixed regularly. It can make cable chain move smoothy and stably.
- It creats long life span compared to pervious model.
Nylon bar type and size
-
GC.NB-800
-
GC.NB-400
-
GC.NB-800R
-
GC.NB-400R

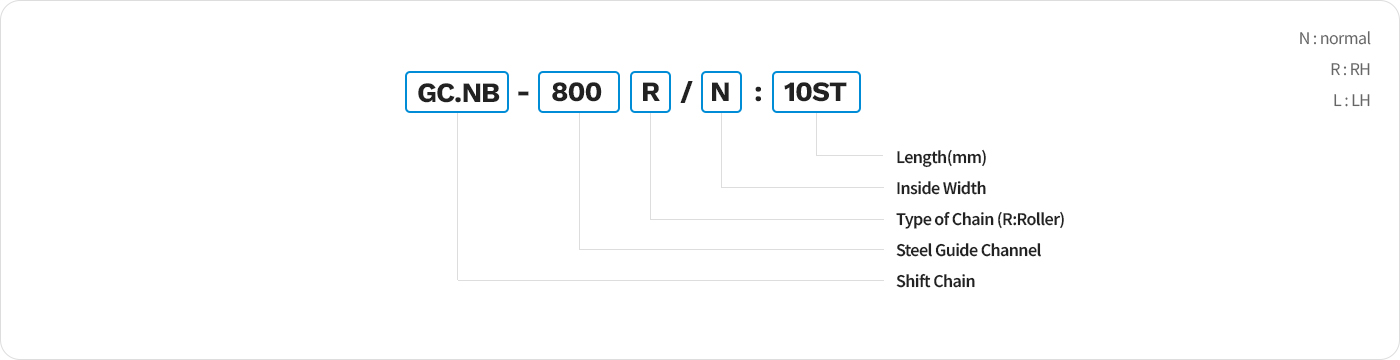

Nylon bar Ordering
